25 pin female d sub connectors
High reliability and All contacts are precision machined
Contact terminations can be solder cup, straight, right angle
RoHS & UL Compliant versions available
Inquiry Now

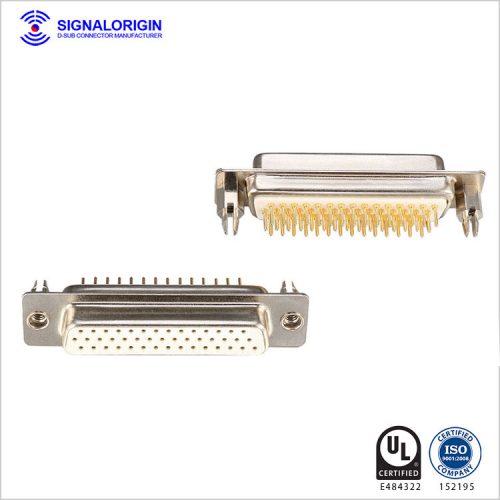

25 pin D-sub female PCB right angle connector
描述
SIGNALORIGIN is the 25 pin D-sub female PCB right angle connector manufacturer. Our D-sub connector range consists of both male and female connectors in various terminations such as solder buckets, straight and right angled solder pins with 9, 15, 25 and 37 contact versions. Suitable for military, aerospace, industrial, medical, telecom and computer applications. Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.
Specification of 25 pin D-sub female PCB right angle connector
| P/N | XHY-06-0022 | ||
|---|---|---|---|
|
|
Material | Insulator material | PBT+30% G.F (UL94V-O) |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Phosphor copper | ||
| Contact plating | Gold finish over nickel | ||
| Shell material | Steel/SPCC-SD, nickel or tin plated | ||
| Electrical | Dielectric rating | 300V AC | |
| Current rating | 5 AMP | ||
| Contacts OD | ∮0.76 | ||
| Contact resistance | 15mΩ Max | ||
| Insulation resistance | 1000MΩ Min at 500V DC | ||
| Mechanical | Dielectric withstanding voltage | 750V AC rms at 1 minute | |
| Insertion force | ∮0.76: 0.3～2N /Pin | ||
| Extraction force | ∮0.76: 02 N /Pin min | ||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +105°C | ||
