High current rating:10A, 20A, 30A, 40A
Allows signal, high current & high voltage in one connector
Corrosion protected & corrosion resistant options
RoHS & UL Compliant versions available
Inquiry Now

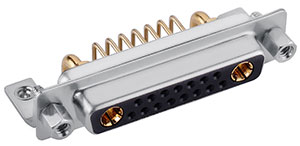

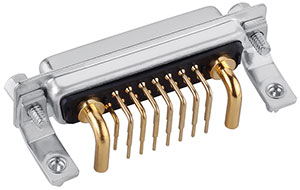

17W2 D-sub female right angle connector with screws
描述
SIGNALORIGIN is the 17W2 D-sub female right angle connector in China. The Power D-Sub mixes both power contacts and signal contacts in the same connector or all contact is signal contacts. 17W2 have 2pcs power contacts and 15pcs signal contacts. The Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.
- D-sub with flexibility, durability, sealability
- High current rating:10A, 20A, 30A, 40A customization
- Safety UL certification and ISO 9001 Quality standard
- Personal and friendly customer service
- Comprehensive product size, and customization available
- 3~5 set free sample are provide for you
- Short-term products delivery, normally 3~7 days
Specification of 17W2 D-sub female right angle connector
| P/N | XHY-05-2628 | ||
|---|---|---|---|
|
|
Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Brass | ||
| Contact plating | Gold Plated, 1U”-30U” | ||
| Shell material | Steel/SPCC-SD, nickel or tin plated | ||
| Electrical | Working voltage | 300V AC | |
| High power contacts current rating | 10A-40A(customized) | ||
| Signal contacts current rating | 5A | ||
| Contact resistance | 2.7 milliohms max | ||
| Insulation resistance | 2000MΩ Min.at 500v DC | ||
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute | |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
||
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||

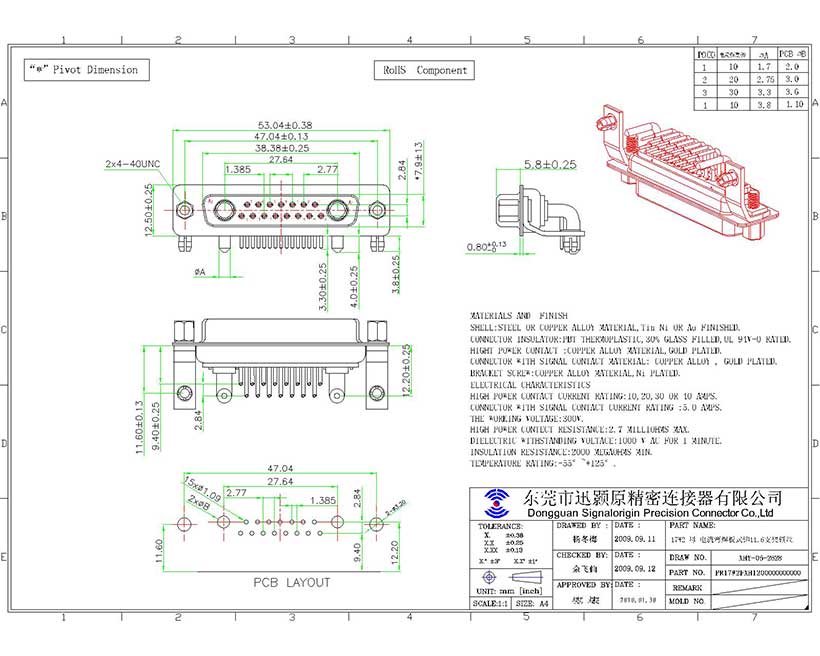

Drawing of 17W2 D-sub female right angle connector
