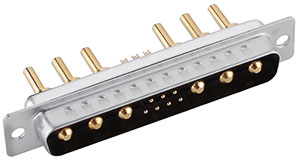

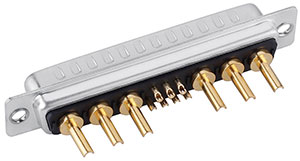

13W6 D-Sub high current long solder cup connector
描述
SIGNALORIGIN is the 13W6 D-Sub high current long solder cup connector manufacturer. Combo D-SUB R/A 13W6 Connector. The Power D-Sub mixes both power contacts and signal contacts in the same connector or all contact is signal contacts. 13W6 have 6pcs power contacts and and 7pcs signal contacts. The Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.
Specification of 13W6 D-Sub high current long solder cup connector
| P/N | XHY-05-2401 | ||
|---|---|---|---|
|
|
Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Brass | ||
| Contact plating | Gold Plated, 1U”-30U” | ||
| Shell material | Steel/SPCC-SD, nickel or tin plated | ||
| Electrical | Working voltage | 300V AC | |
| High power contacts current rating | 10A-40A(customized) | ||
| Signal contacts current rating | 3A | ||
| Contact resistance | 2.7 milliohms max | ||
| Insulation resistance | 2000MΩ Min.at 500v DC | ||
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute | |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
||
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||

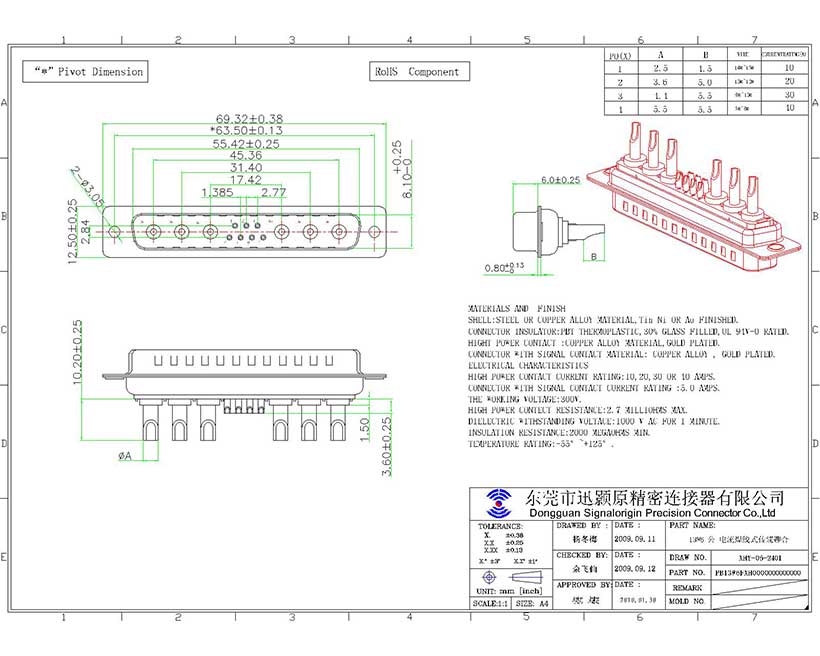

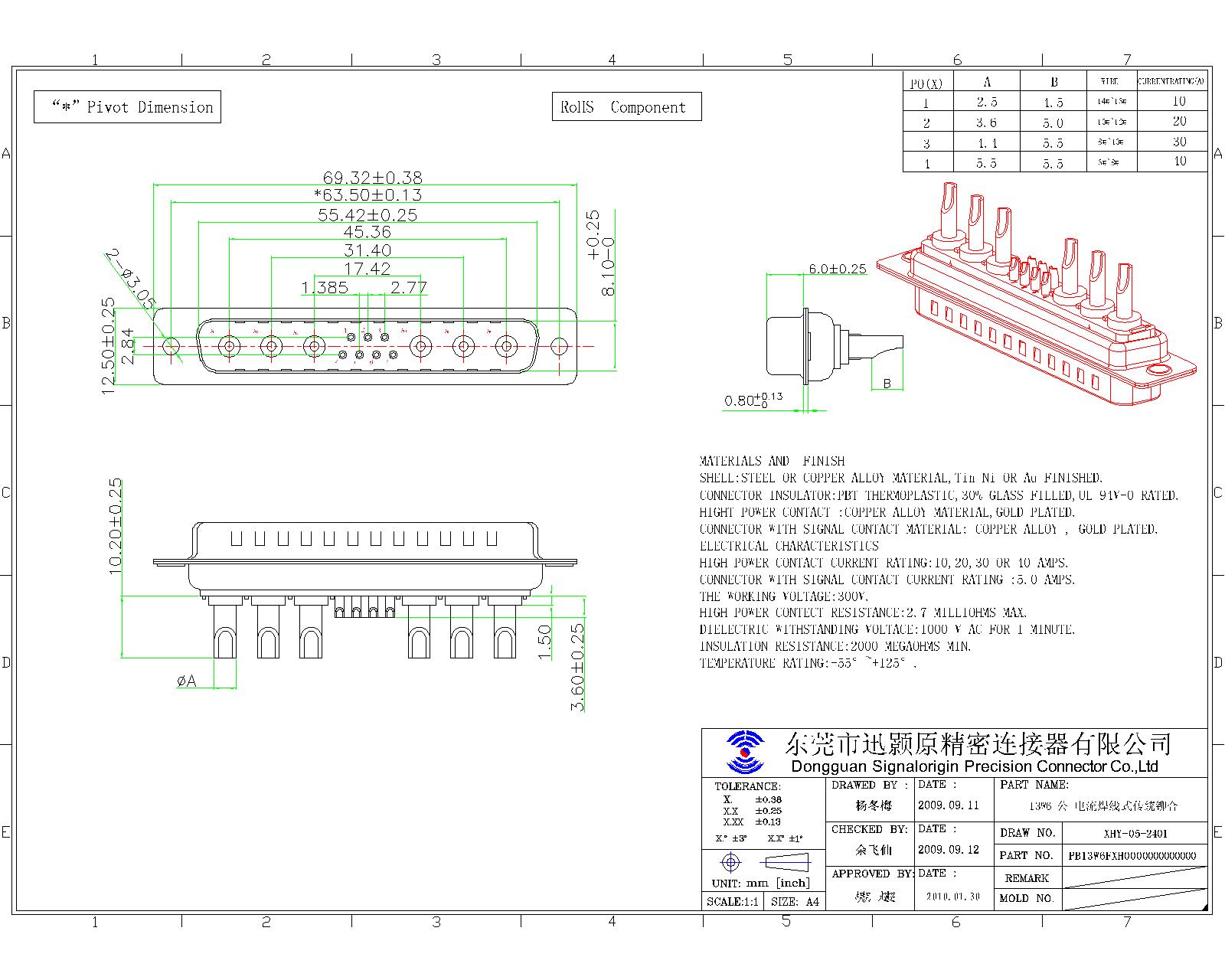

Drawing of 13W6 D-Sub high current long solder cup connector
Variety of D-sub connectors
 |
 |
 |
 |
 |
||||
| Stander D-sub | Coaxial D-sub | Combo D-sub | High density D-sub | Waterproof D-sub |
Products Certifications
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
 |
 |
| Safety UL Certification | ISO9001:2008 |
