7W2 female right angle D-sub coaxial connector. All contacts are machined processing, phosphor copper material, gold plated. 7W2 Coaxial D-Sub have 2 coaxial contacts. It is full layout. The impedance for the coaxial contacts are 50Ω or 75Ω.
| 7W2 female right angle D-sub coaxial connector |
|---|
 |
| 7W2 female right angle D-sub coaxial connector |
Specification of 7W2 female right angle D-sub coaxial connector
Materials and finish
- Shell: Steel or copper alloy material, Tin/Ni or Au finished
- Connector insulator: PBT thermoplastic, 30% Glass filled, UL 94V-O rated
- High frequency contact: Copper alloy material, gold plated
- Connector with signal contact material: Copper alloy, gold plated
Electrical characteristics
- High frequency contact current rating: 50 or 75 ohm
- The radio frequency : 0~3GHz
- Connector with signal contact current rating: 3A
- The working voltage: 300V
- High frequency contact resistance: 10 milliohms max
- Dielectric withstanding voltage: 1000 v AC for 1 minute
- Insulation resistance:2000 megaohms min
- Temperature rating: -55°C ~125°C

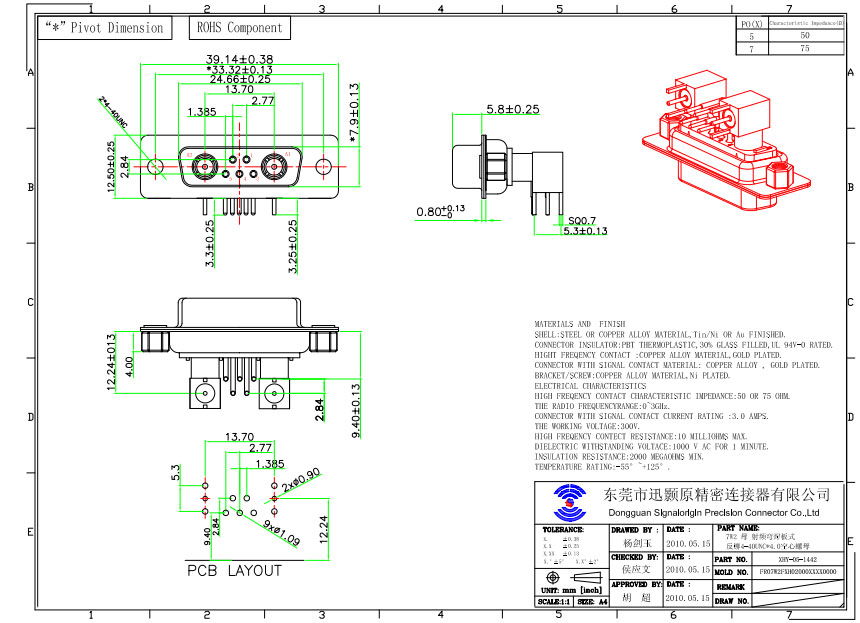

Drawing of 7W2 female right angle D-sub coaxial connector
Products Certifications
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
 |
 |
| Safety UL Certification | ISO9001:2008 |
Signalorigin is a China leader in providing interconnect solutions into a wide range of markets and applications, from traditional connectors to the latest and next generation technical products.
Signalorigin is a manufacturer of electrical connectors and associated products for the electronics industry. The Signalorigin product line-up includes a full line of D-Sub connectors, hoods and accessories, as well as, high voltage contacts and accessories to be used with our connectors.
 |
 |
 |
 |
 |
||||
| Stander D-sub | Coaxial D-sub | Combo D-sub | High density D-sub | Waterproof D-sub |
- 75 and 50 Ohm coaxial contacts
- High power contacts up to 40 A
- High voltage contacts up to 3 kV
Mixed Layout Connectors feature high abrasion and corrosion resistance, low thermal contact resistance, very good contact characteristics, excellent solder-ability, and even plating density. Depending on the application, solder pot, straight PCB, or crimp terminations are available, as well as insertion and removal tools for the crimp versions to ensure safe and reliable installation.
